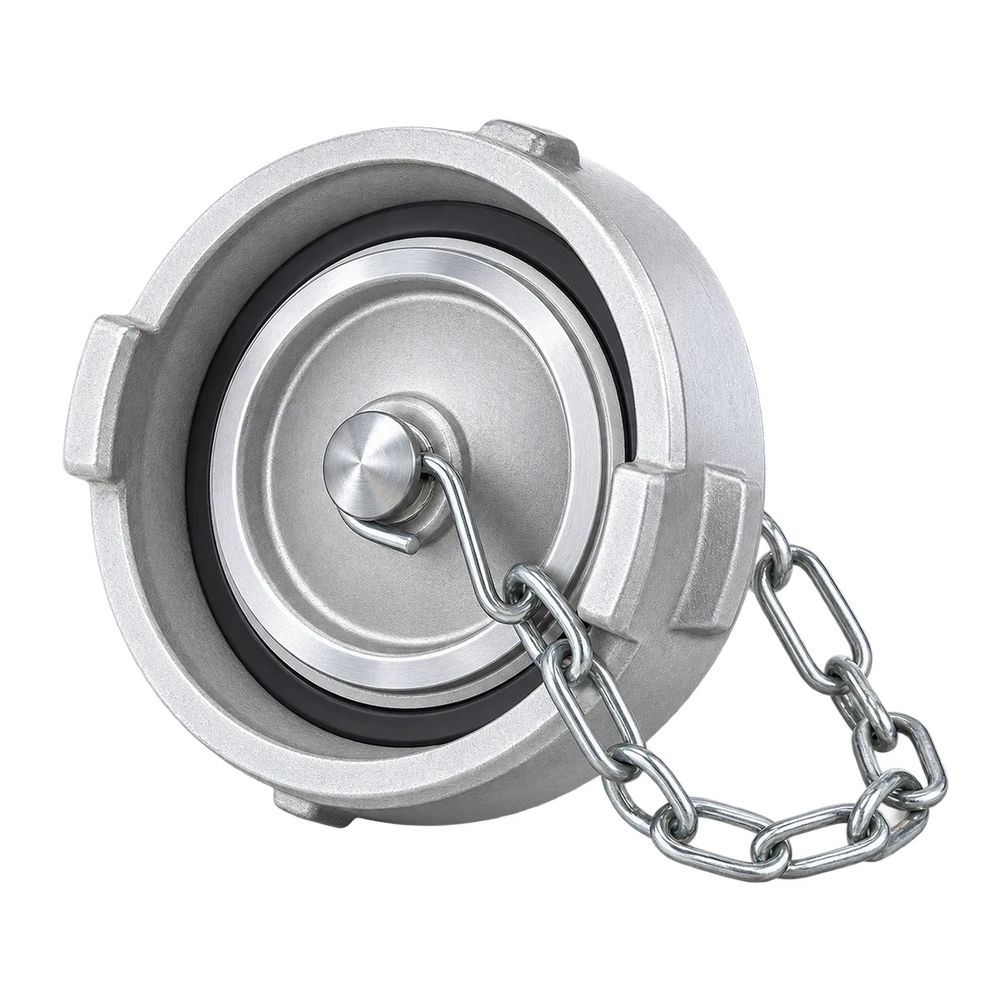

BLIND CAP
Storz Blind Cap with Chain
Seals and protects an unused Storz connection. The retaining chain keeps the cap attached to the equipment.
Quick-connect water transfer fittings
Aluminum Storz Couplings
Symmetrical, quarter-turn hose couplings for firefighting, hydrants, irrigation, mining dewatering and high-volume industrial water transfer. Select hose tails, threaded adapters, blind caps and large-bore configurations.
Aluminum AlloyLightweight body
1 to 6 InchConfigurable range
NBR / EPDM / FKMSeal options
Hose / Thread / CapEnd connections
Storz Coupling Product Range
Choose the connection style first, then confirm lug spacing, nominal size, hose or thread connection, seal material and working pressure.

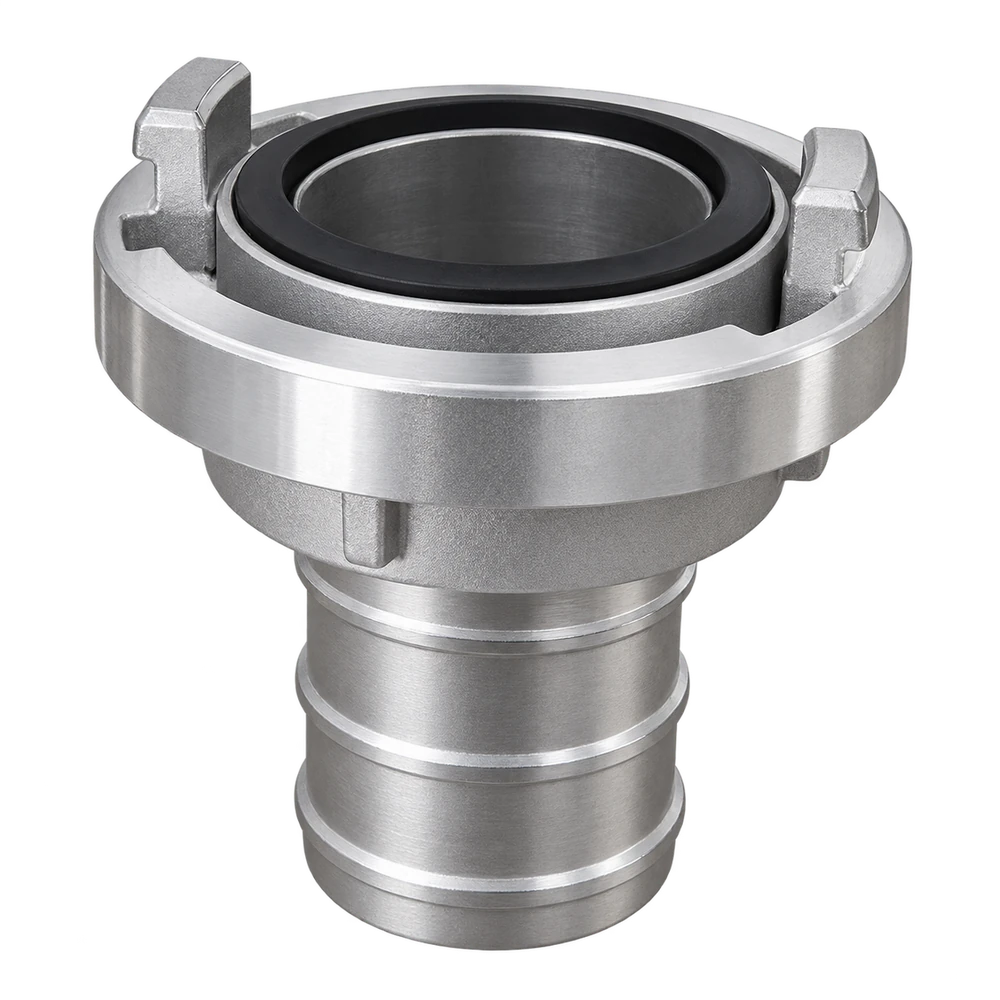

HOSE END
Aluminum Fire Hose Storz Coupling Hose End
Storz locking head with a ribbed hose shank for fire hose, irrigation and general water transfer assemblies.

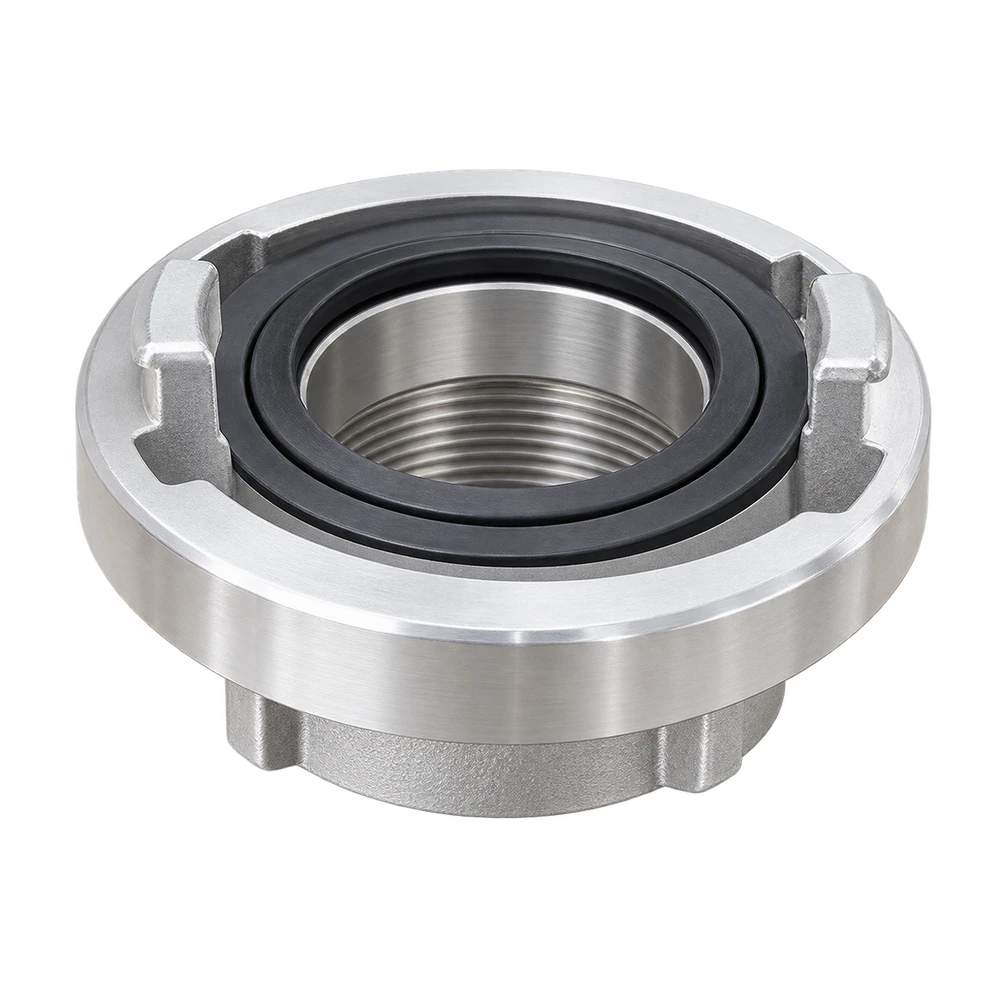

FEMALE END
Aluminum Fire Hose Storz Coupling Female End
Storz locking head with an internal female pipe thread for pumps, hydrants, valves and fixed piping.

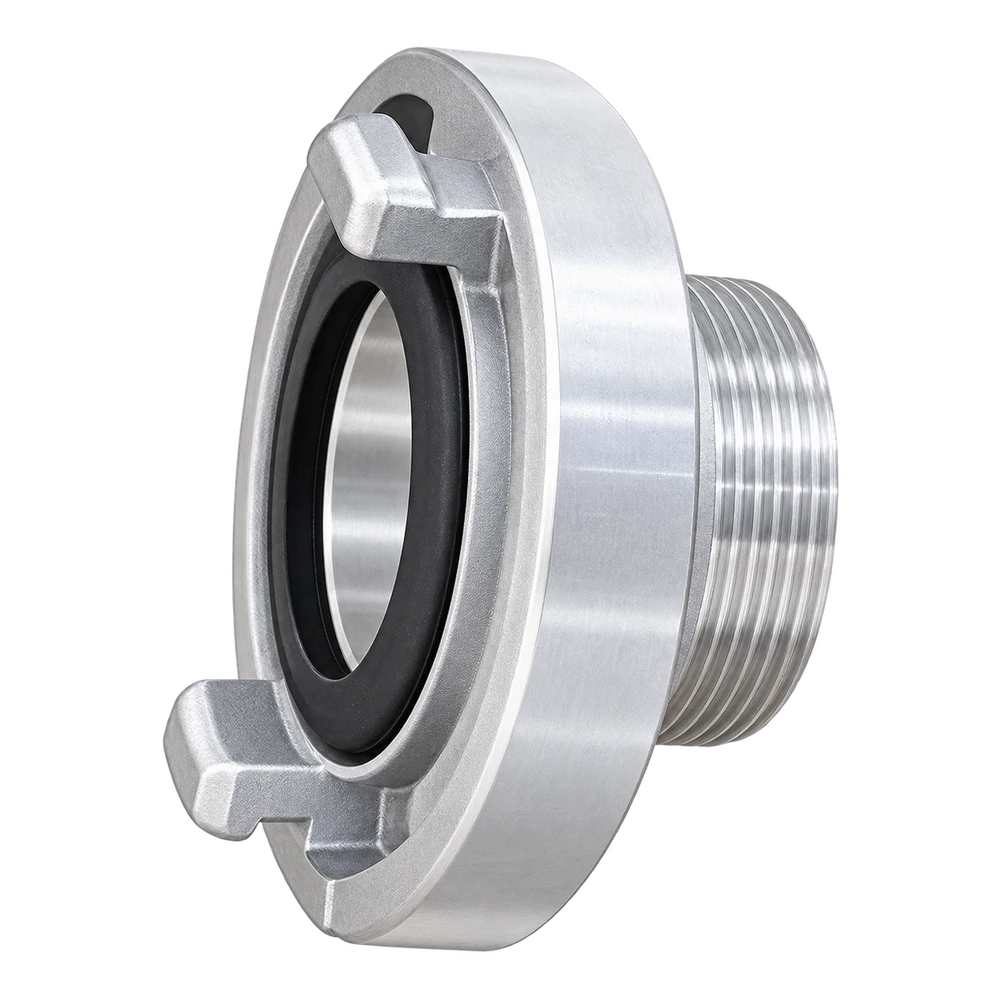

MALE END
Aluminum Fire Hose Storz Coupling Male End
Storz locking head with an external male pipe thread for fixed equipment and threaded line connections.

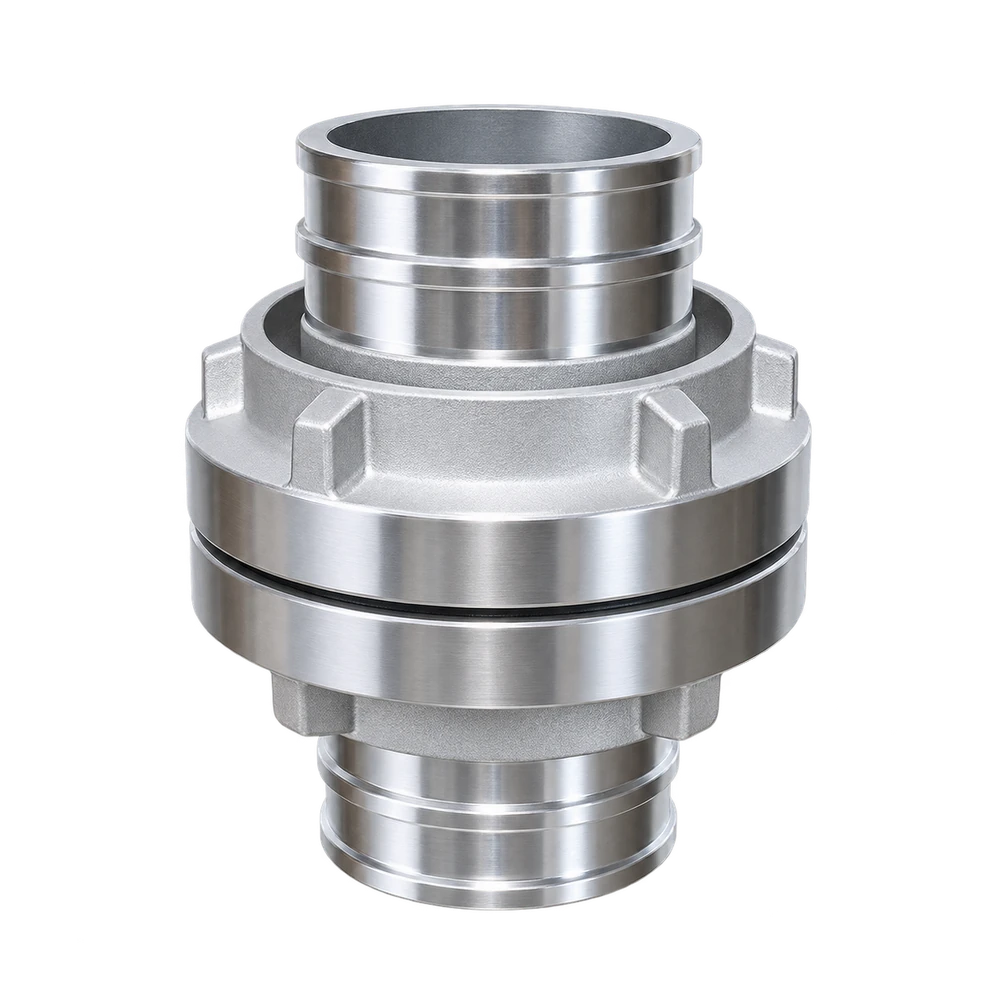

4 INCH MINING
4 Inch Storz Quick Coupling for Mining Hose
Compact high-flow coupling assembly with matched Storz halves and hose connections for mining and dewatering lines.

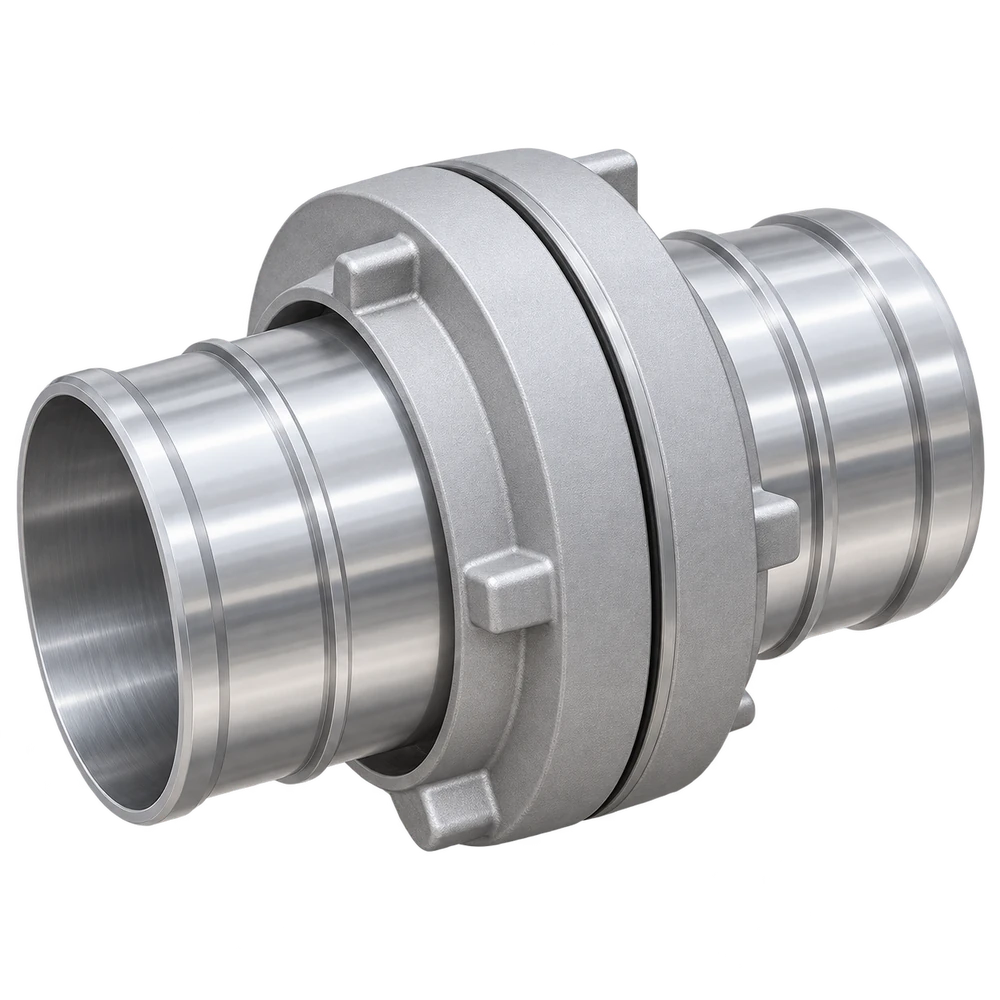

6 INCH MINING
6 Inch Aluminum Storz Coupling for Mining Hose
Heavy-duty large-bore coupling assembly with reinforced Storz collars for high-volume mining and dewatering service.
Configuration Guide
Storz couplings are symmetrical at the mating end, but claw spacing and connection dimensions must match. Confirm dimensions before ordering.
| Product Forms | Blind cap, hose end, female thread end, male thread end, 4-inch mining hose coupling and 6-inch mining hose coupling |
|---|---|
| Nominal Size | 1 to 6 inch range, subject to coupling type and lug spacing |
| Body Material | Aluminum alloy standard; alternative material requirements reviewed by drawing or sample |
| Thread Options | BSP and NPT options available for threaded adapters |
| Seal Options | NBR standard; EPDM and FKM quoted for application-specific compatibility |
| Surface | Natural aluminum finish; project-specific finishing reviewed on request |
| Applications | Fire hose, hydrant, municipal water, irrigation, mining dewatering and industrial transfer |
| Order Support | Dimension matching, sample confirmation, OEM packaging and batch inspection |
Fast, symmetrical connection
How Storz Couplings Work
Two identical coupling heads engage at the lugs and lock with a short turn. Because there is no male or female mating half at the Storz face, hose sections can be connected quickly in either direction.
Browse All Hose Couplings1. AlignMatch the two lug openings.
2. InsertPress the two faces together.
3. Quarter TurnRotate until the lugs lock.
4. SealThe gasket forms the pressure seal.
Typical Applications
Storz connections are selected where speed, interchangeability and high-volume water transfer matter.
Firefighting & Hydrants
Fast hose deployment for emergency and fixed fire protection equipment.
Municipal Water
Temporary bypass, tanker filling and water distribution connections.
Mining Dewatering
Large-bore hose lines for moving high volumes of site water.
Irrigation
Portable agricultural hose networks and pump connections.
Industrial Transfer
General water service around plants, equipment and construction sites.
Marine & Emergency
Rapid water supply and temporary transfer systems in demanding environments.
Storz Coupling FAQ
Quick answers for product identification, compatibility and ordering.
How do I identify the correct Storz coupling size?
Measure the clear distance between the two locking lugs, then provide the hose inside diameter or thread size. A product photo and dimensions help confirm compatibility.
Which Storz end connections are available?
Common configurations include hose end, female thread end, male thread end, blind cap, 4-inch mining hose coupling and 6-inch mining hose coupling.
Which seal material should I select?
NBR is the standard choice for general water service. EPDM or FKM seals can be quoted when temperature or fluid compatibility requires them.
Can MCHEN match an existing coupling?
Yes. Send a clear photo, lug spacing, hose or thread size, working pressure and required quantity for a compatibility review.
Need a Storz Coupling Quote?
Send the lug spacing, connection size, end style, seal requirement and quantity. Our team will review compatibility before quoting.
